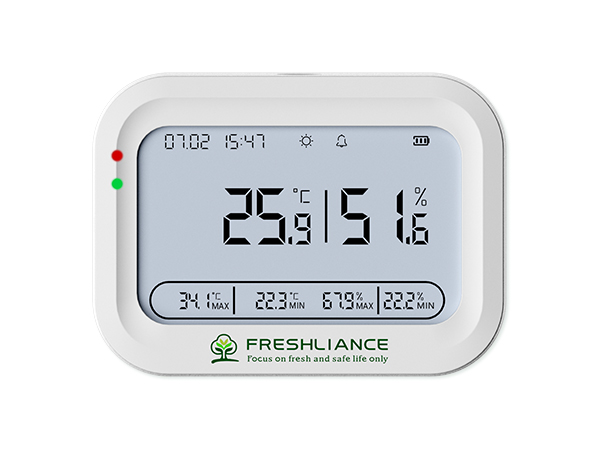

COEUS-WIFI/4G Wireless Temperature Humidity Data Logger

Temperature Range:
－90℃~+200℃; 5% ~ 95% (Without condensation)
Accuracy: ≤±0.5℃; ±3%RH (25℃, 20%~90%RH) ±5%RH (Other)
Run Days:Max. 90 days
COEUS-WiFi /4G is the multi-use real-time data logger for temperature and humidity monitoring, and data storage and review. The logger has an LCD display through which you can directly view the device status, real-time temperature, minimum, maximum, and average temperatures. If the ambient temperature and humidity exceed the alarm value, the alarm status will also be displayed.

Inquiry

Download

Introduction

COEUS-WiFi /4G real-time data logger is configurable with our APP and then all monitoring data will be automatically uploaded to the Freshliance Cloud through WiFi or 4G network accordingly. Up to two external probes can be optionally selected. They are suitable for the environmental monitoring of cold rooms, especially the freezers and refrigerators.

Features

Set and update settings remotely

These real time data loggers can be easily configured and reconfigured with the APP FreshLink, and even the computer platform, including logging interval, upload interval, alarm settings, and alarm notifications, etc.

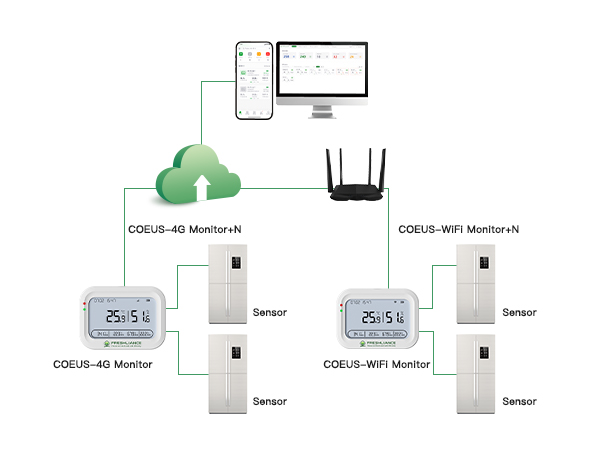

Data transmission to the Cloud via WIFI/4G, and data review by APP and computer platform

These data loggers monitor data as configured and transfer the data to the Freshliance Cloud via WiFi or 4G network accordingly. All data are accessible via the APP and the computer platform, with data graphing, statistics, analysis, and processing.

Persistent caching during offline mode, and data re-upload after network recovery

These data loggers support 24/7 data monitoring and uploading as configured, and allow the data to be cached on the main device during offline mode and re-uploaded after network restoration, so as to ensure the data integrity.

Large LCD screen with backlight for intuitive display

An LCD screen, 85mm*52mm, is designed to intuitively display current temperature and humidity, Max./Min. temperature and humidity, date and time, battery level and communication status, etc.

Rechargeable Battery

These data loggers are designed with a built-in rechargeable lithium battery of 2600mAh, which can be available while charging, so as to ensure the long-term stability of data monitoring.

Instant, Real-time Alarms

Up to 6 alarm points can be set. When the preset thresholds are exceeded, alarm notifications will be sent via SMS, email and APP push remotely, as well as locally via flashing red indicator and the buzzer on the main device.

Multiple installation modes: Stand on end, hanging, etc.

These data loggers can be flexibly installed or placed anywhere according to the actual monitoring environment.

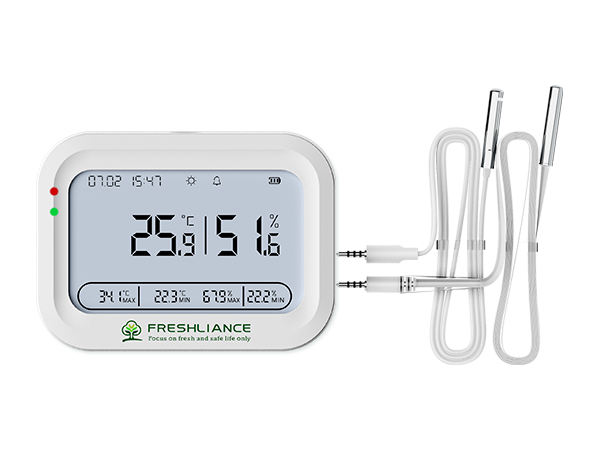

External probes (flexible ultra thin cable optional)

To meet the specific application requirements, especially the ultra-low temperature monitoring, up to two external probes can be optionally applied, with the temperature down to -90℃. Flexible ultra thin cable, 0.3mm thick and 7.5mm wide, can also be selected for the data monitoring of fridges, freezers, to ensure higher sealing performance.

Specification

Model	COEUS-WiFi	COEUS-4G
Data Upload Network	WiFi	4G
Device Configuration Network	Device AP	4G
Maximum Power Consumption	≤ 126mA	≤ 150mA
Built-in Sensor	-20℃ ~+ 50℃ ±0.5℃ F.S.
	5% ~ 95% (Without condensation) ±3%RH (25℃, 20%~90%RH) ±5%RH (Other)
Battery	Rechargeable lithium battery
Power Port	USB-Type C
Power Input	5V/2A (DC)
Charging Time	About 3.5 hours
Power Consumption in Operation	≤ 150uA
Display	LCD
Alarm Mode	Audible and visual alarm
Standby Time	Max. 90 days (uploading interval: one hour)
Device Dimensions	109mm(L)33mm(W)80mm(H)
Screen Dimensions	85mm*52mm
Weight	145g

Optional External Probes

(Flexible ultra thin cable optional, 0.3mm thick and 7.5mm wide)

External Temperature and Humidity Probe

-40℃ ~+85℃

±0.5℃ F.S.

±3.0%RH (25℃, 20%~90%RH)

±5%RH (Other)

External NTC Temperature Probe

-30℃ ~+70℃

±0.5℃ (-30℃~+50℃)

±1℃ (+50℃~+70℃)

External Digital Temperature Probe

-90℃ ~+ 200℃

±0.3℃ (-40℃~+100℃)

±0.5℃ (-80℃~-40℃; +100℃~+150℃)

±1℃ (Other)

Applications

COEUS-WIFI/4G Wireless Temperature Humidity Data Logger is widely used in many fields and can be placed in the living room, baby room, and other rooms at home to display temperature and humidity in real-time. You can judge the room environment based on temperature and humidity.

Warehousing and Logistics: Wireless temperature humidity data loggers are used to monitor the temperature and humidity of goods and storage areas. It prevents humidity and temperature fluctuations from causing damage to the product.

Laboratory and Medical Facilities: Real-time Temperature data loggers are used to monitor laboratory conditions and the environment of stored samples and pharmaceuticals. It ensures the reliability of experimental results and protects pharmaceuticals and samples from adverse environmental conditions.

Food and Beverage Industry: Real-time data loggers are used to monitor the temperature and humidity of environments and products. It helps ensure food safety and quality and meets regulatory requirements.

Greenhouses and Agriculture: Temperature humidity data loggers are used to monitor the temperature and humidity of plant-growing environments. Can improve crop yield and quality.

Real-time data logger can also be used in museums, archives, libraries, etc. that need to be stored in a certain temperature and humidity environment. This wireless temperature and humidity monitor can monitor temperature and humidity over time to ensure they are at the right temperature and humidity.
